Cosmo Flail Mower FRF125
Details

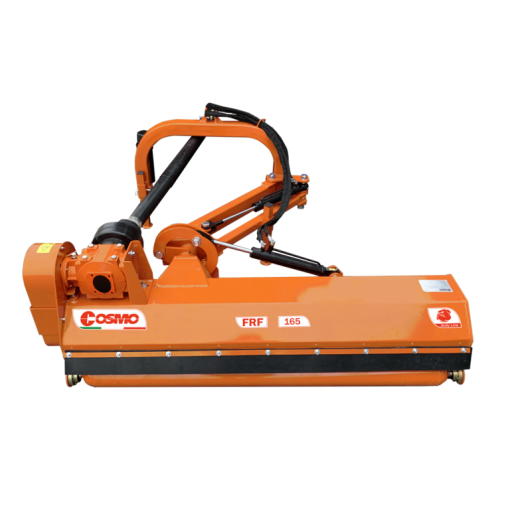

Cosmo Flail Mower FRF125
The FRF lateral mower is suitable both for rear work position and for lateral one. It can be used to cut grass and to shred small branches and vine shoots in vineyards, hazelnut groves, fruityards and in vicinity of hedges and ditches
- Series 4 PTO shaft
- Side skids
- Rotor with hammers
- Adjustable-in-height rear roller
- Hydraulic side shift and tilting
Specifications:
| Mod. | - | FL 125 | 1230 mm |
|---|---|---|
| Dimensioni totali Overall dimension Largeur hors tout Außenabmessungen | - | 1426x683x583 mm |
| Larghezza di lavoro Tilling width Largeur de travail Arbeitsbreite | - | 1200 mm |
| CV consigliati Tractor HP range CV recommandés Traktorleistung PS | - | 20-40 |
| Tipologia attacco 3° punto 3-point hitch type Attelage 3 points Dreipunktbock (Kat.) | - | CAT. 1 |
| N° di martelli Number of hammers Nombre de marteaux Schlegelhammer Anzhal | - | 20 |
| Diametro rotore Rotor diameter Diamètre rotor Rotorsdurchmesser | - | 108 mm |
| Diametro rullo posteriore Roller diameter Diamètre rouleau Walzedurchmesse | - | 121 mm |
| Presa di forza PTO input speed Prise de force Zapfwelle | - | 540 rpm |
| Tipo di trasmissione Transmission type Type de transmission Seitlicher Antrieb | - | 3 cinghie - 3 belts 3 courroies - 3 Keilriemen |
| Rapporto riduttore Gears ratio Rapport de vitesse Getriebeübersetzung | - | 1:3 |
| Peso - Weight Poids - Gewicht | - | 286 kg |
| Spessore rotore Rotor thickness Èpaisseur rotor Rotor dicke | - | 8 mm |
| Spessore telaio Frame thickness Èpaisseur cadre Rahmen dicke | - | 4 mm |
| Spessore telaio Roller thickness Èpaisseur rouleau Dicke rolle | - | 4 mm |
