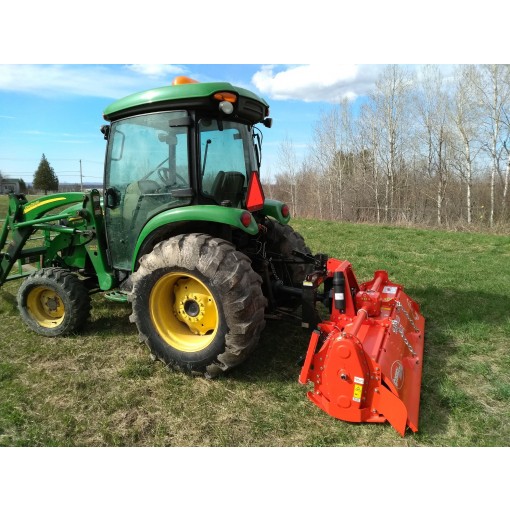

Cosmo Rotary Tiller, UM Series, 72"

More Views

  • cosmo rotary tillers
  • rotary tillers
  • rotary tillers

Cosmo Rotary Tiller, UM Series, 72"

CA$3,099.00

Quick Overview:

Our widest 3 point tiller!


Pick up in Vaughan and save! Add the item to cart and select Local Pick Up to view the discount.

Product Attachments
View FileOwners' Manual    Size: (2.85 MB)
View FileAssembly Manual    Size: (1.26 MB)

Details

Cosmo Rotary Tiller UM72



- Gear driven side transmission in oil bath
- Series 5 PTO with slip clutch (610 mm cross to cross)
- Adjustable lower hitch brackets
- CE safety guards
- Powder coated
- Adjustable side depth skids

- 6 tines per flange

- Size of blades: 18 x 11.8 x 6 CM

- Category 1 three-point hitch

Total width: 77.5"

Tilling width: 72"

Tractor HP range: 25-50 HP

9 flanges on rotor

54 tines

Tines per flange: 6

Blade shape: curved

PTO input speed: 540 RPM

Rotor shaft speed: 241 RPM

Maximus working depth: 7"

Roor tube diameter: 7.6 cm

Rotor swing diameter: 43.4 cm

Weight: 928lb
