spreader pto shaft

More Views

  • spreader pto shaft

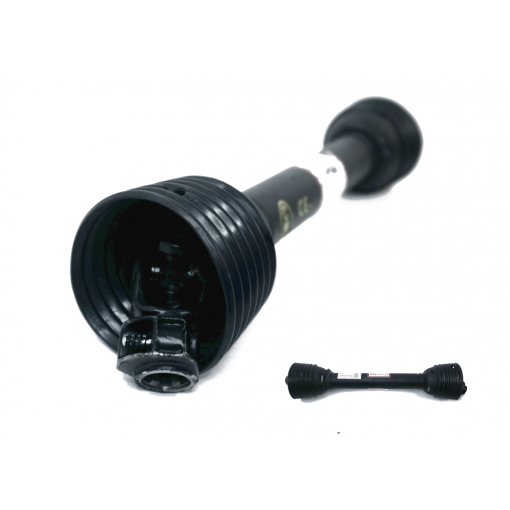

Series 1 PTO Shaft for Rotary Spreaders


Quick Overview:

Series 1 PTO Shaft for Single Disc Rotary Spreaders
Both sides have 1-3/8 Z6 splined yokes
Push Pin on Both Sides
Lemon Shaped Telescoping Tubes
When extended tubes have to have a min. of a 20cm overlap
Cross to cross length in closed positon: 510mm (32.5")
Total Length in Closed Position: 696mm (27.4")
Cross Width: 54.1mm
Cross Diameter: 22mm
For 16-24HP implements


CMR PTO Shaft model AL01S051C0101

Please download technical specs for more info.
